Our IntAfit ball bearing soft close drawer slide with 45kg load rating, 45mm profile height and 550mm closed length with a further 550mm extension (1100mm open length). Classified as a medium duty drawer slide in our range with a quick release lever for installation and built in soft close mechanism to prevent drawers from slamming shut.

The products Specification sheet can be found at the bottom of this page, please read for installation guidance.

Please click  to view our Help Guides & Advice page.

Features

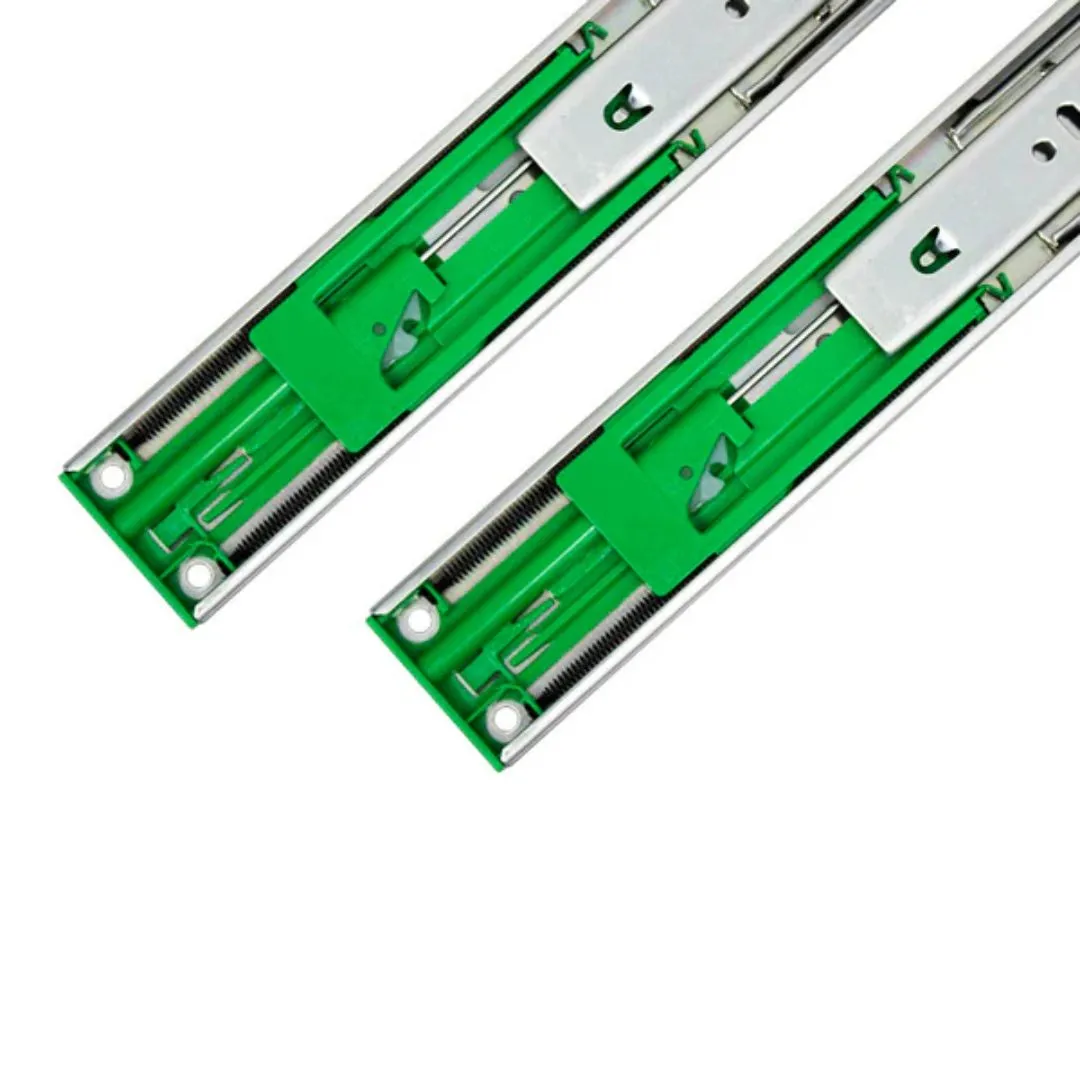

• Type: Soft Close

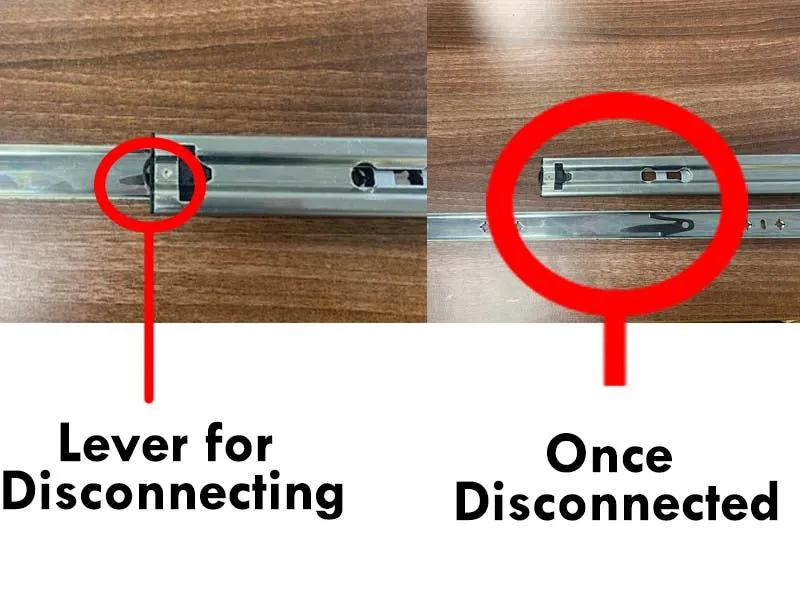

• Quick Release: Yes

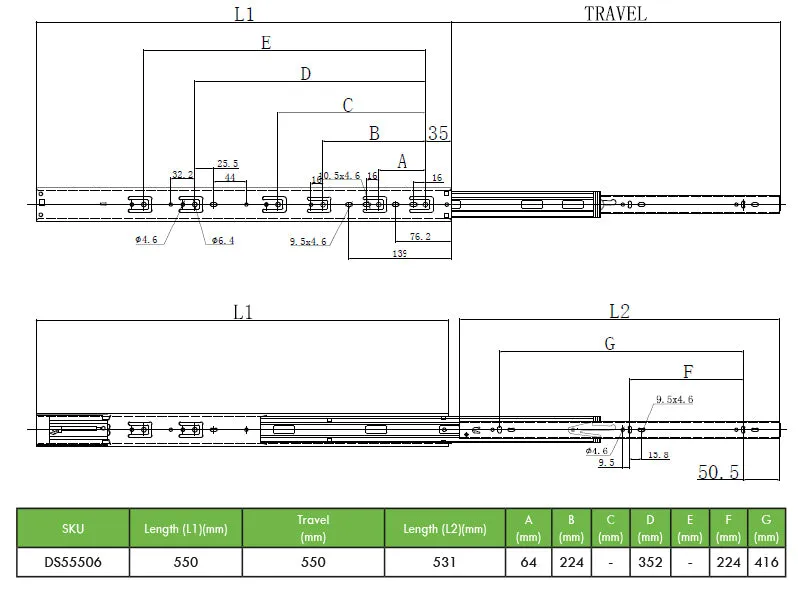

• Closed Length: 550mm
• Open Length: 1100mm

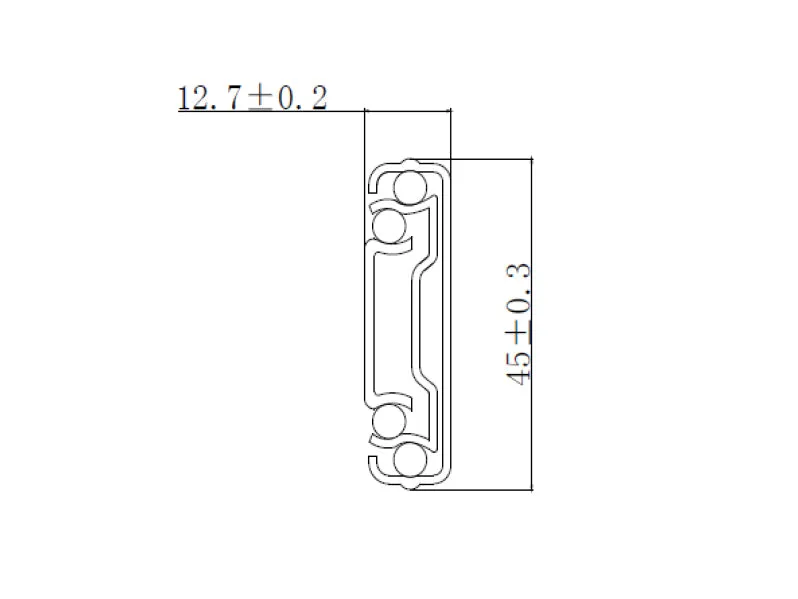

• Profile Height: 45mm
• Profile Width: 12.7mm
• Load Rating: 45kg (based on 450mm length)
• Range Sizes: 350 - 550mm
• Finish: Zinc Plated
• Fixing Method: Screw or Rivet

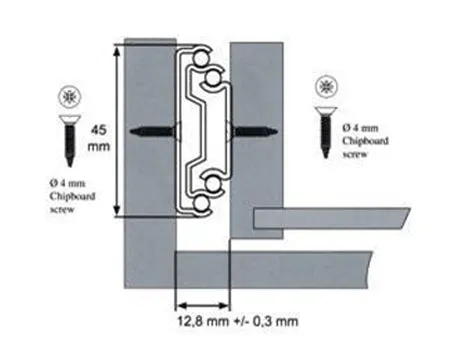

• Installation: Side Mounted (Base mounting these runners is not recommended)

Applications

• Office Furniture
• Bedroom Furniture
• Toolbox storage units
• Vehicle conversions
• Caravans
• Motorhomes
• Computer server storage
• Shop fitting

Recommended Screws
