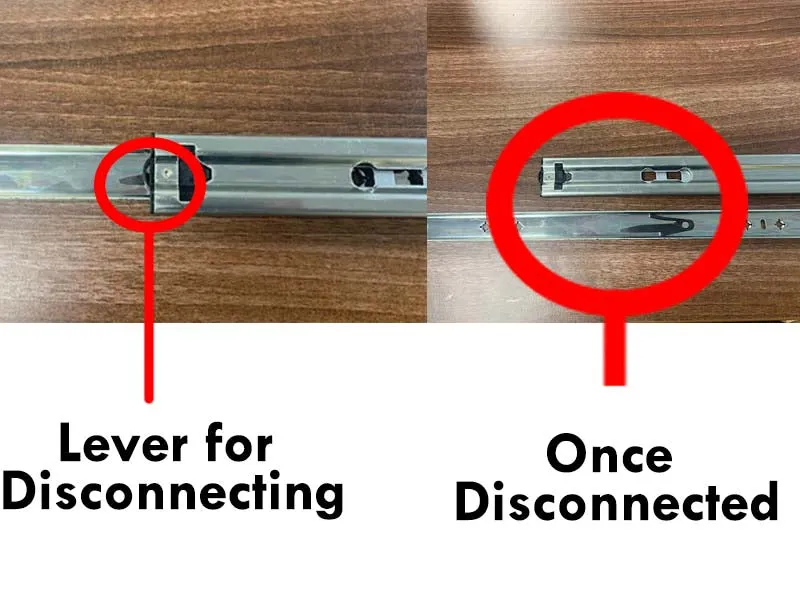

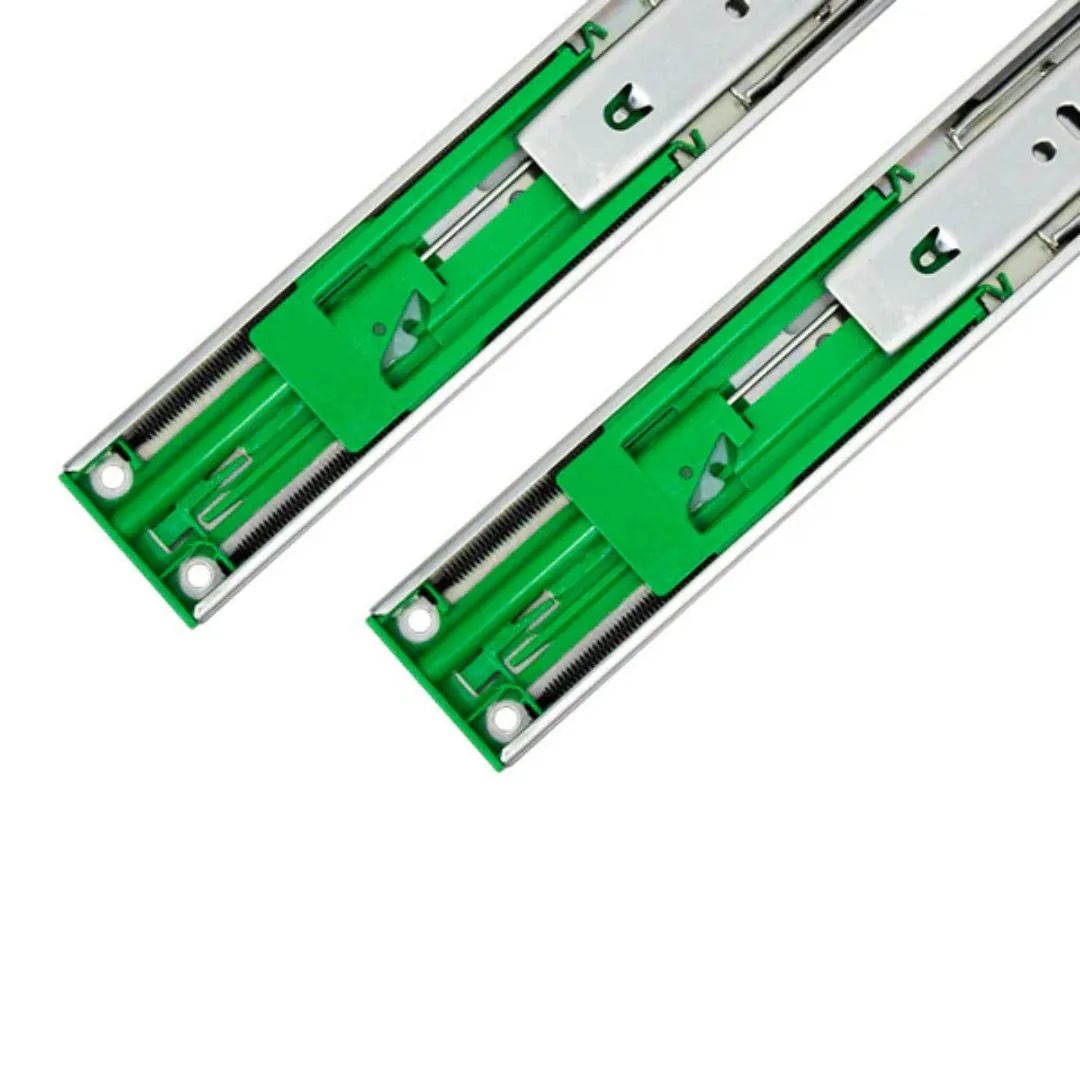

Our IntAfit ball bearing soft close slide with 45kg load rating, 45mm profile height and 350mm closed length with a further 350mm extension (700mm open length). Classified as a medium duty drawer slide in our range with a quick release lever for installation and built in soft close mechanism to prevent drawers from slamming shut.

Features

• Type: Soft Close
• Quick Release: Yes

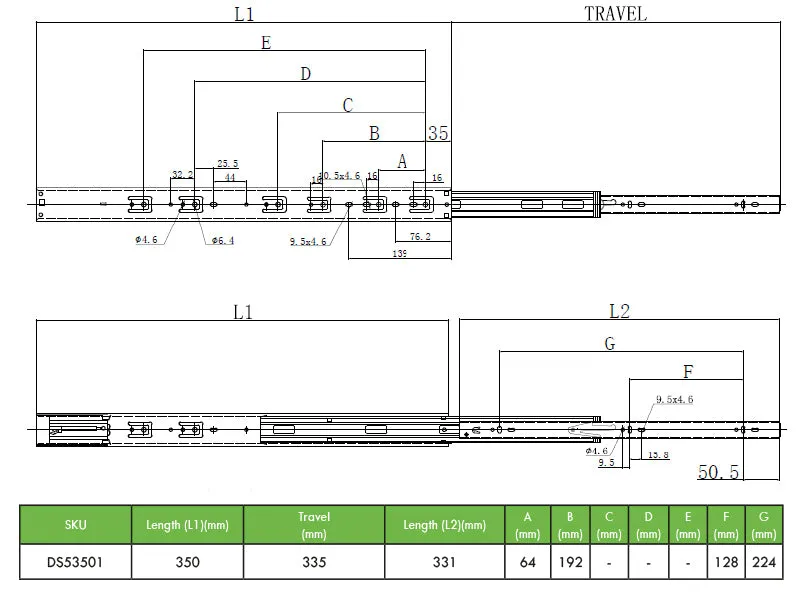

• Closed Length: 350mm
• Open Length: 700mm

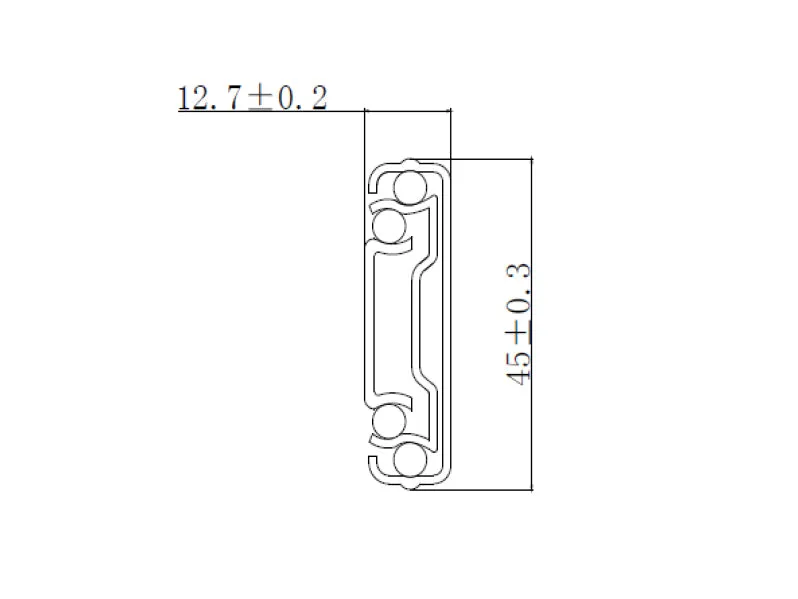

• Profile Height: 45mm
• Profile Width: 12.7mm
• Load Rating: 45kg (based on 450mm length)
• Range Sizes: 350 - 550mm
• Finish: Zinc Plated

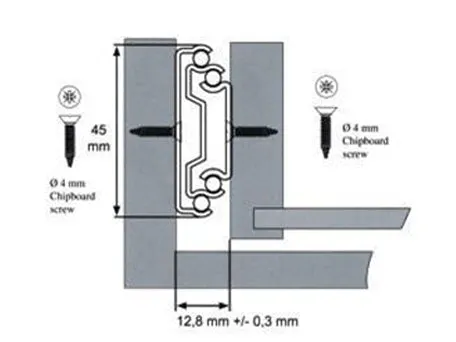

• Fixing Method: Screw or Rivet
• Installation: Side Mounted (Base mounting these runners is not recommended)

Applications

• Office Furniture
• Bedroom Furniture
• Tool box storage units
• Vehicle conversions
• Caravans
• Motorhomes
• Computer server storage
• Shop fitting
